Body-Solid ProDual Inner Outer Thigh DIOT

Body-Solid ProDual Inner Outer Thigh DIOT

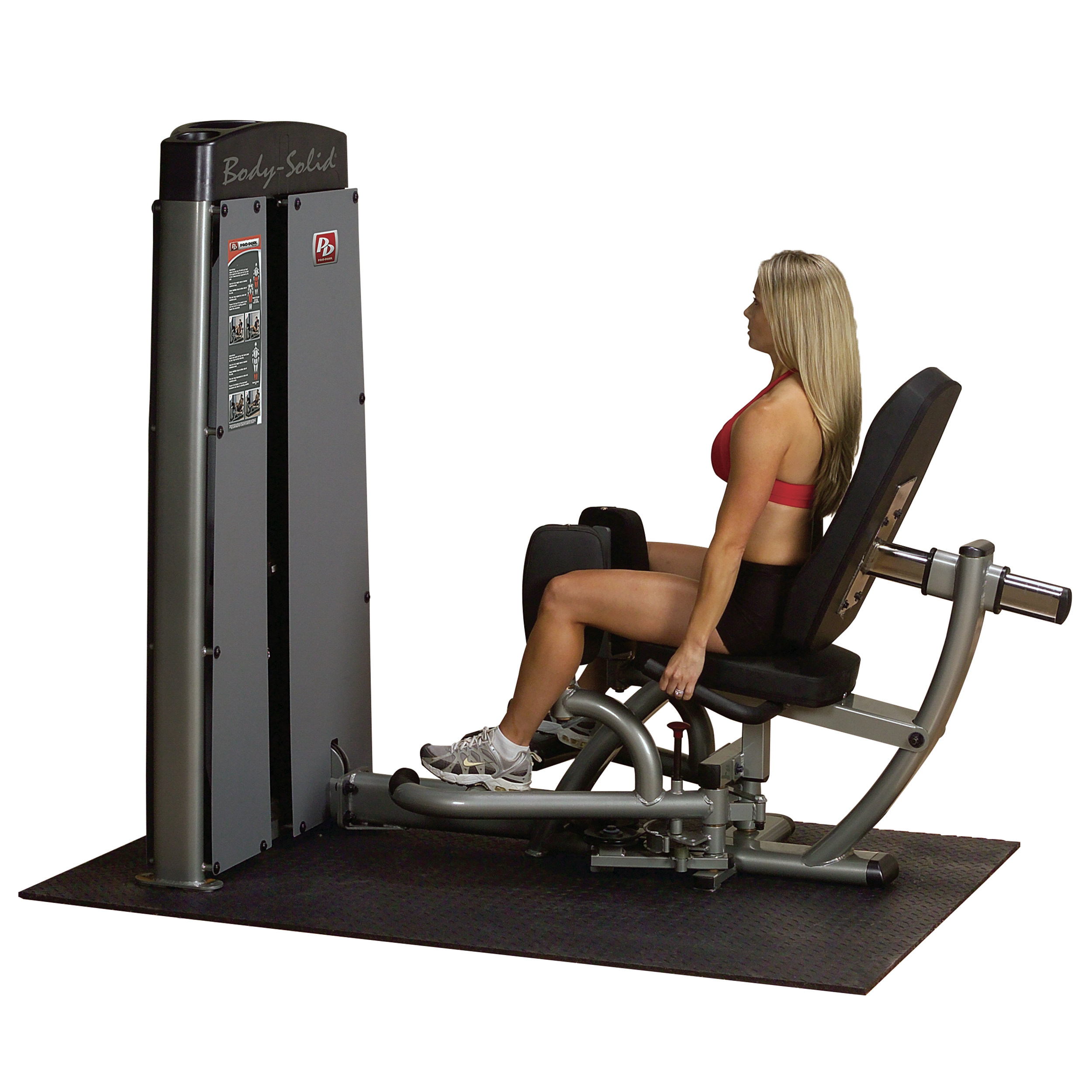

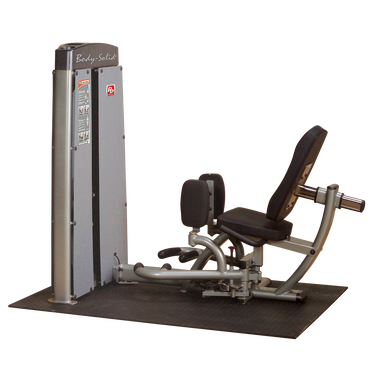

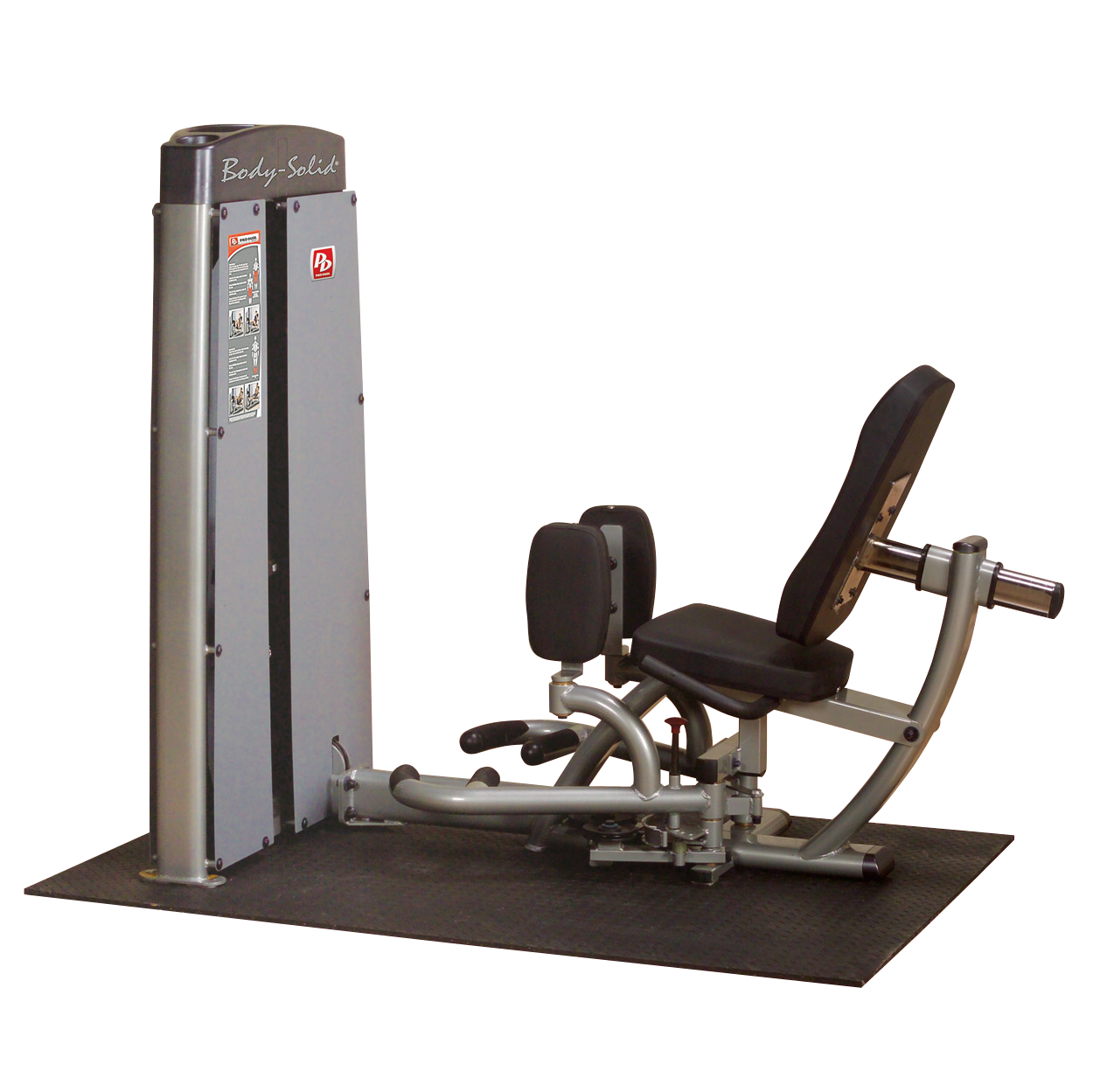

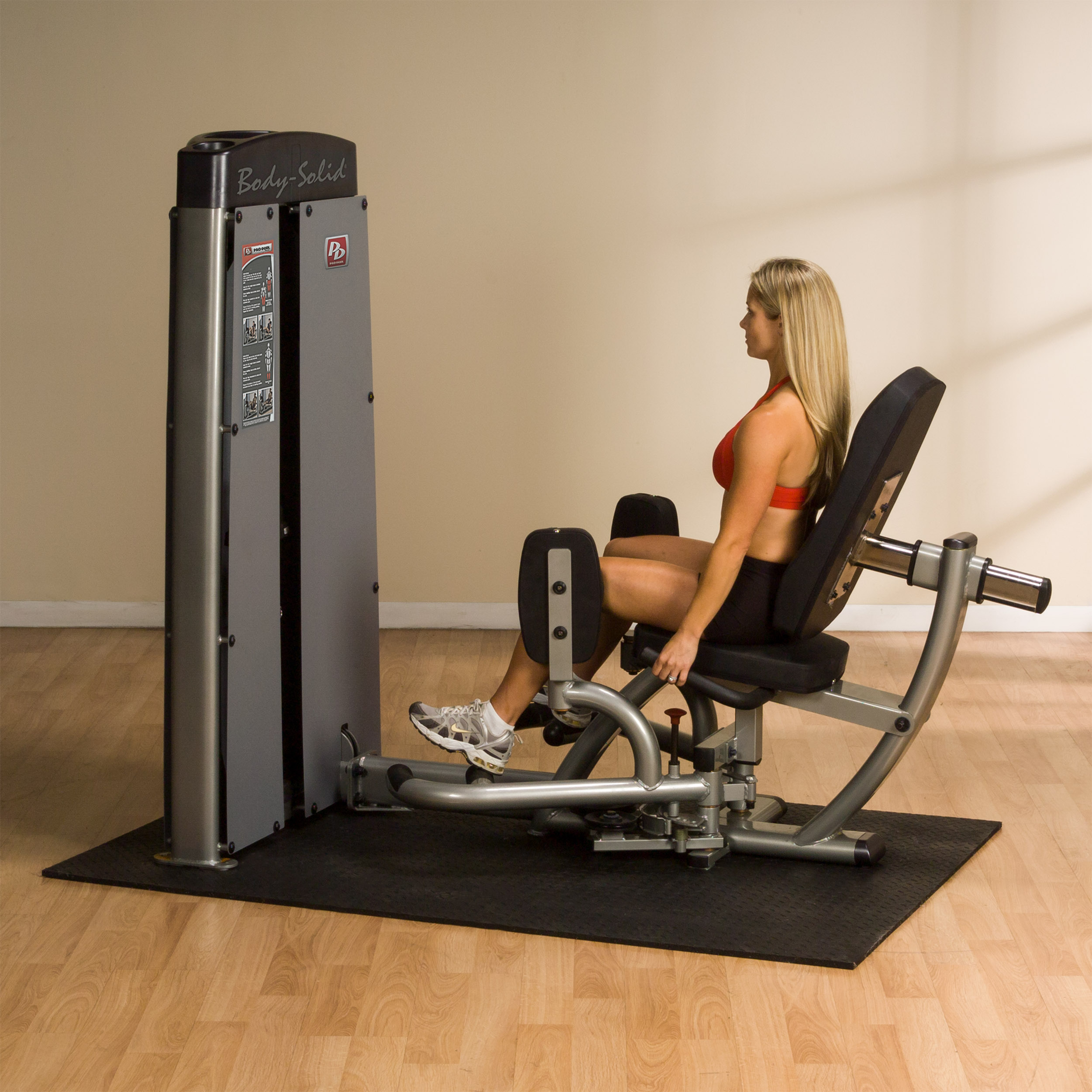

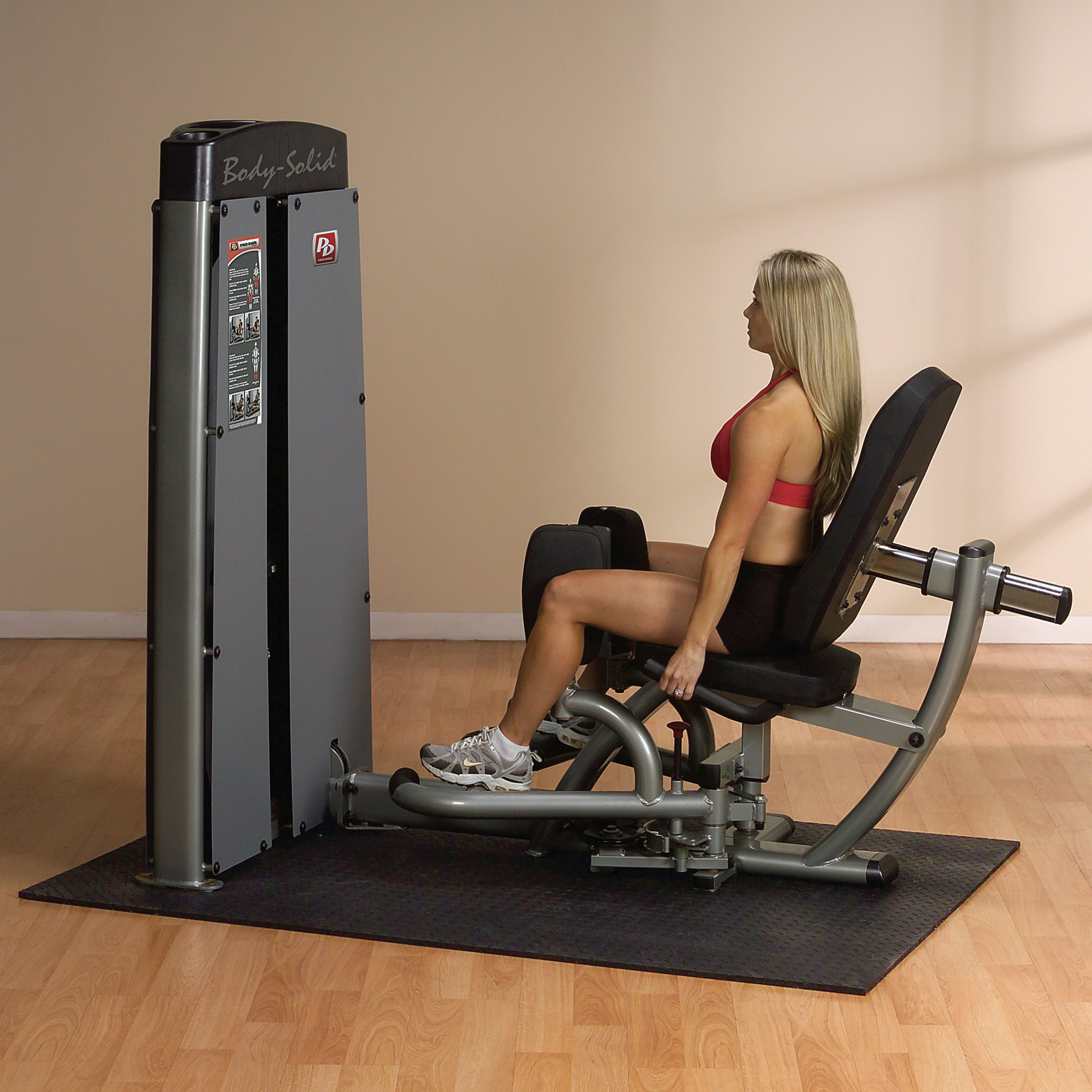

The Body-Solid ProDual Inner Outer Thigh DIOT is designed to provide focused lower-body training by combining hip adduction and abduction exercises within a single machine. This dual-function design allows users to target the inner and outer thigh muscles while maintaining controlled resistance and proper body positioning throughout each movement. Smooth biomechanics and supportive contact points help encourage consistent muscle engagement and comfortable exercise performance.

Built for both versatility and durability, the ProDual Inner Outer Thigh Machine incorporates adjustable positioning and ergonomic support to accommodate users of varying sizes. Its forward-facing design allows easy access to resistance adjustments while helping maintain a stable training position. The DIOT can also function as a modular station within Body-Solid ProDual multi-stack systems, offering flexible integration for larger strength training environments.

Training Features

• Dual-Function Inner & Outer Thigh Training: Supports both hip adduction and abduction exercises within a single machine for balanced lower-body development

• Biomechanical Movement: Ergonomically angled seat and bent-knee positioning help promote proper hip alignment while reducing lower back stress

• Range of Motion: Pop-in cam adjustment allows users to select starting positions and control exercise range of motion

• Knee Pads: Extra-large rotating knee pads provide comfort and support during both inner and outer thigh movements

• Accessibility: Weight stack positioned in front of the user allows convenient resistance adjustments and improved accessibility

• Side Stability Handles: No-slip hand grips provide additional stability and control during exercises

• Seat & Foot Posts: Nine-position adjustable seat back and dual non-skid foot posts help accommodate users of varying sizes

• Resistance System: Selectorized resistance system allows fast, simple weight changes while supporting smooth, controlled weight stack travel

• Instructional Placard: Integrated exercise reference chart helps guide users during machine setup and training

• Modular System Compatibility: Designed to function as a station within Body-Solid ProDual 3-stack and 4-stack gym systems

• Use: Inner and outer thigh exercises

• Setting: Commercial gyms

Construction & Materials

• Construction: Built from 11-gauge 2.375" × 4.625" oval steel tubing with reinforced steel connecting plates and continuous welds for structural strength and durability

• Cable & Pulley System: Fiberglass-reinforced nylon pulleys combined with 5.5 mm aircraft-grade cables rated over 2,500 lbs provide smooth, reliable resistance

• Pivot Bearings: Industrial-grade sealed bearings at major pivot points promote consistent motion and long-term durability

• Upholstery: DuraFirm™ padding with over 2 inches of high-density foam provides supportive comfort and long-lasting durability

• Handles & Grips: High-density rubber grips offer secure and ergonomic hand placement during exercise

• Shrouds: Full weight stack covers enhance safety while maintaining a clean, professional appearance

• Finish: Electrostatic powder-coated metallic finish helps resist scratching, chipping, and fading for long-lasting durability

Specifications

Weight Stack Options: 210 lb Stack, 310 lb Stack

Dimensions: 76" L x 36" W x 62" H

Weight: 475 lbs

Warranty

Body-Solid Full Commercial Warranty

• Lifetime: Frame & welds
• 3 Years: Pulleys, bushings, bearings, hardware, plates, guide rods
• 1 Year: Cables, upholstery, grips (normal wear)
