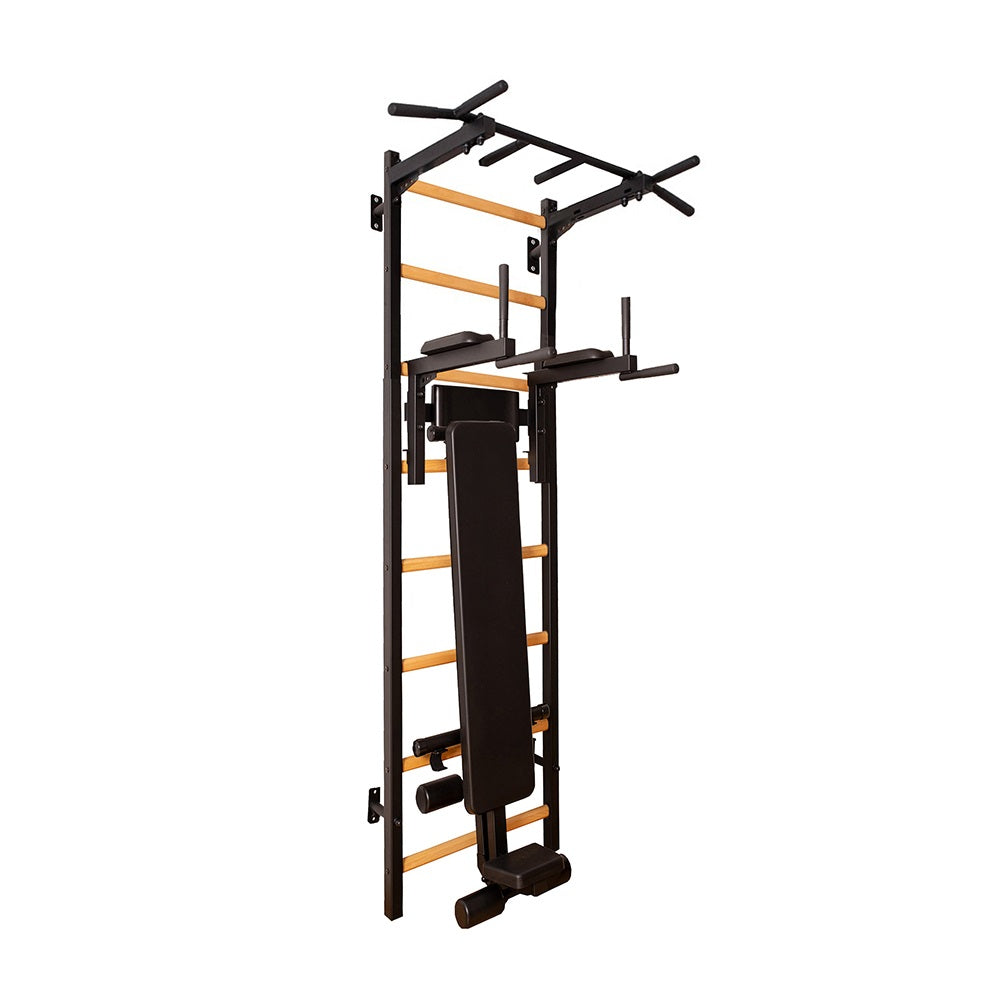

BenchK 223B Wall Bars

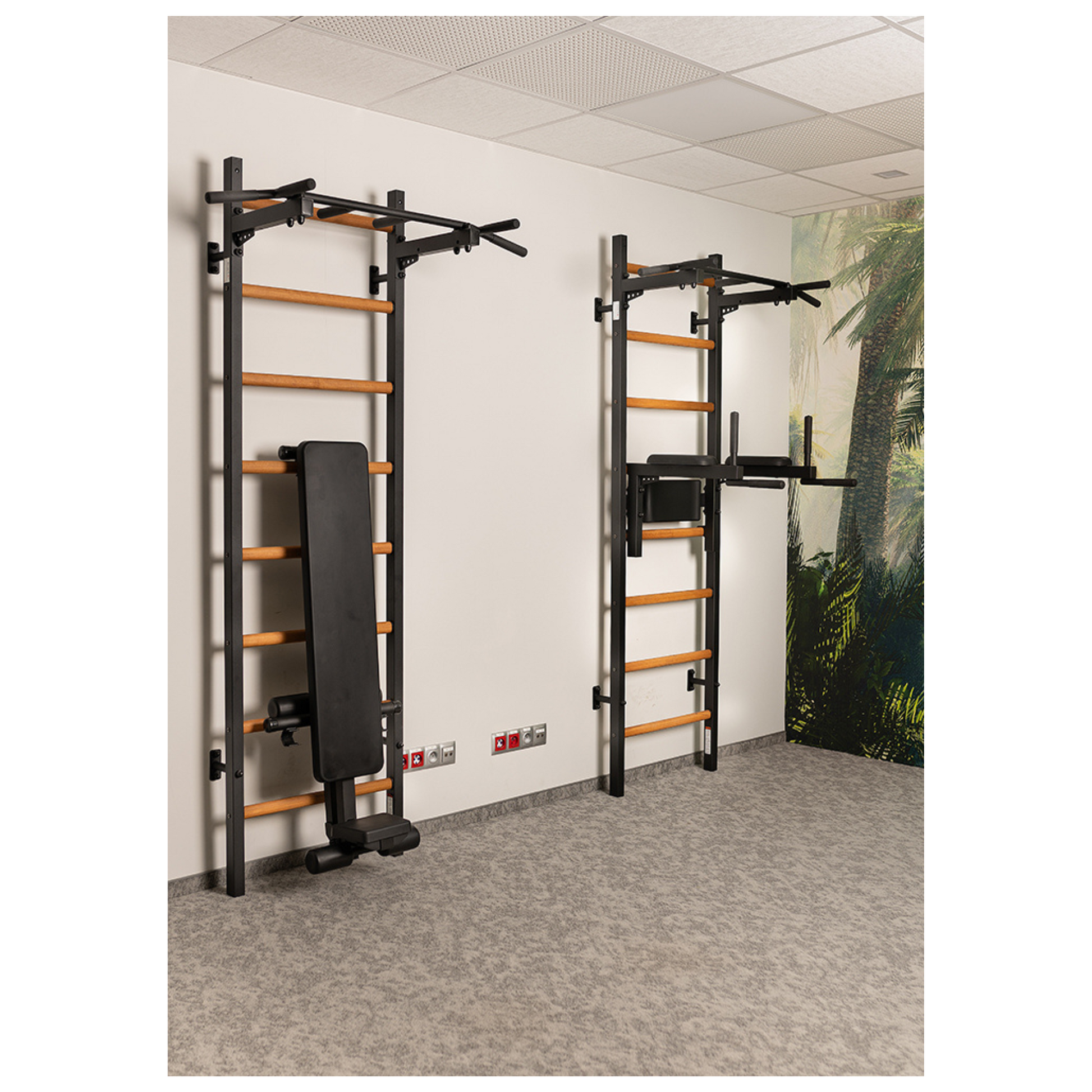

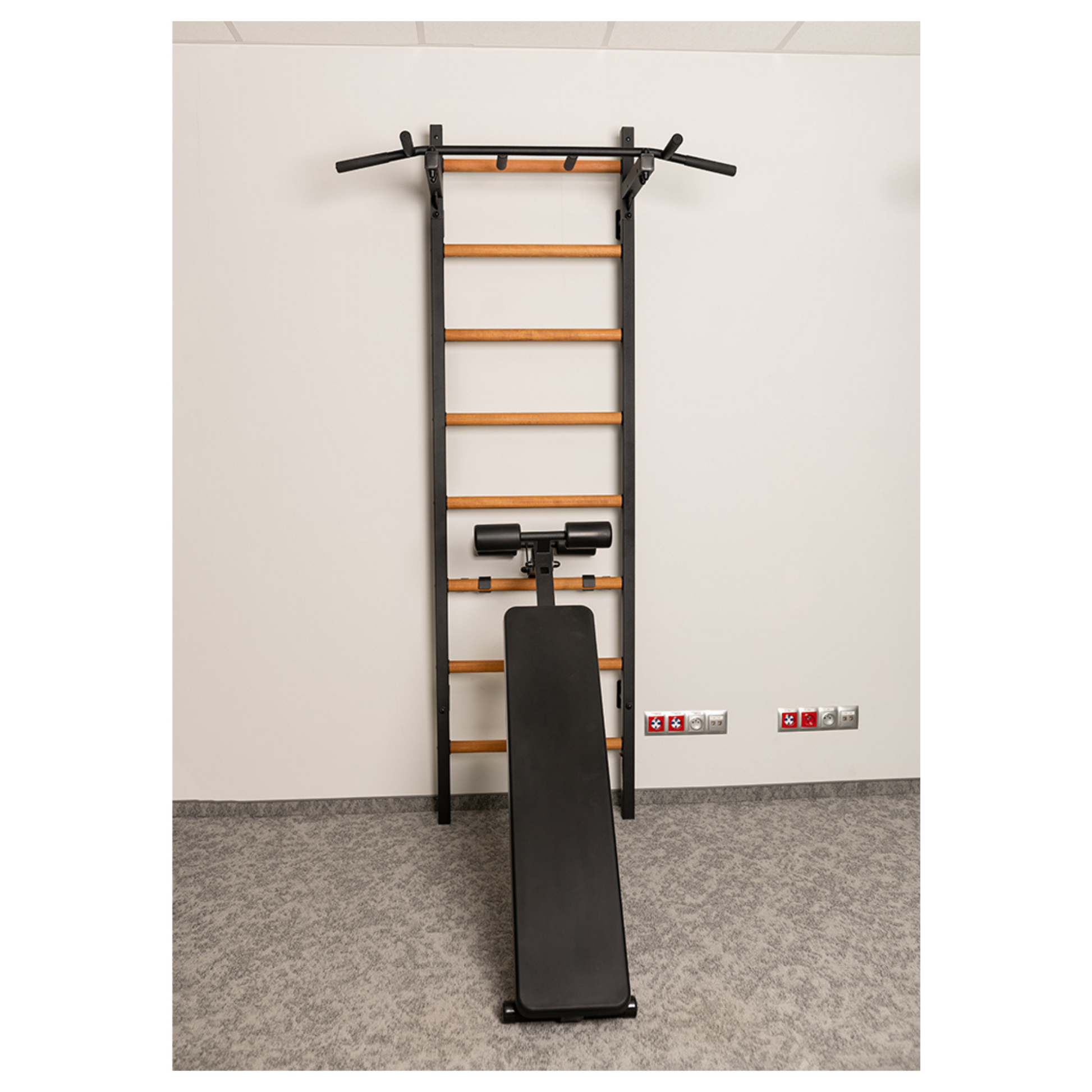

The BenchK 223 Wall Bars include a pull-up bar, dip station, and workout bench, offering a full-body workout in a space-efficient design. Crafted with precision and a minimalist aesthetic, this multifunctional equipment seamlessly fits into homes, offices, and commercial spaces.
Features

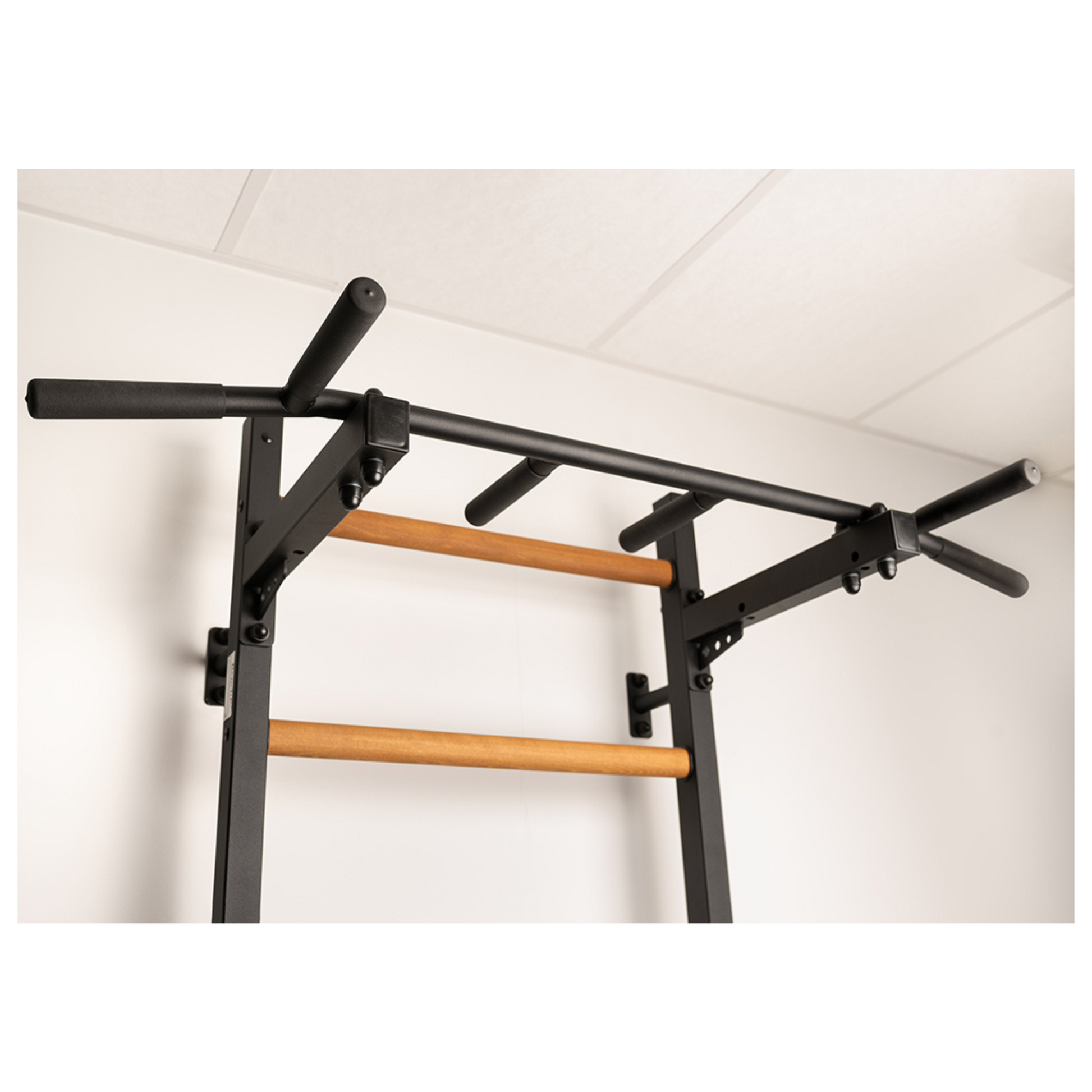

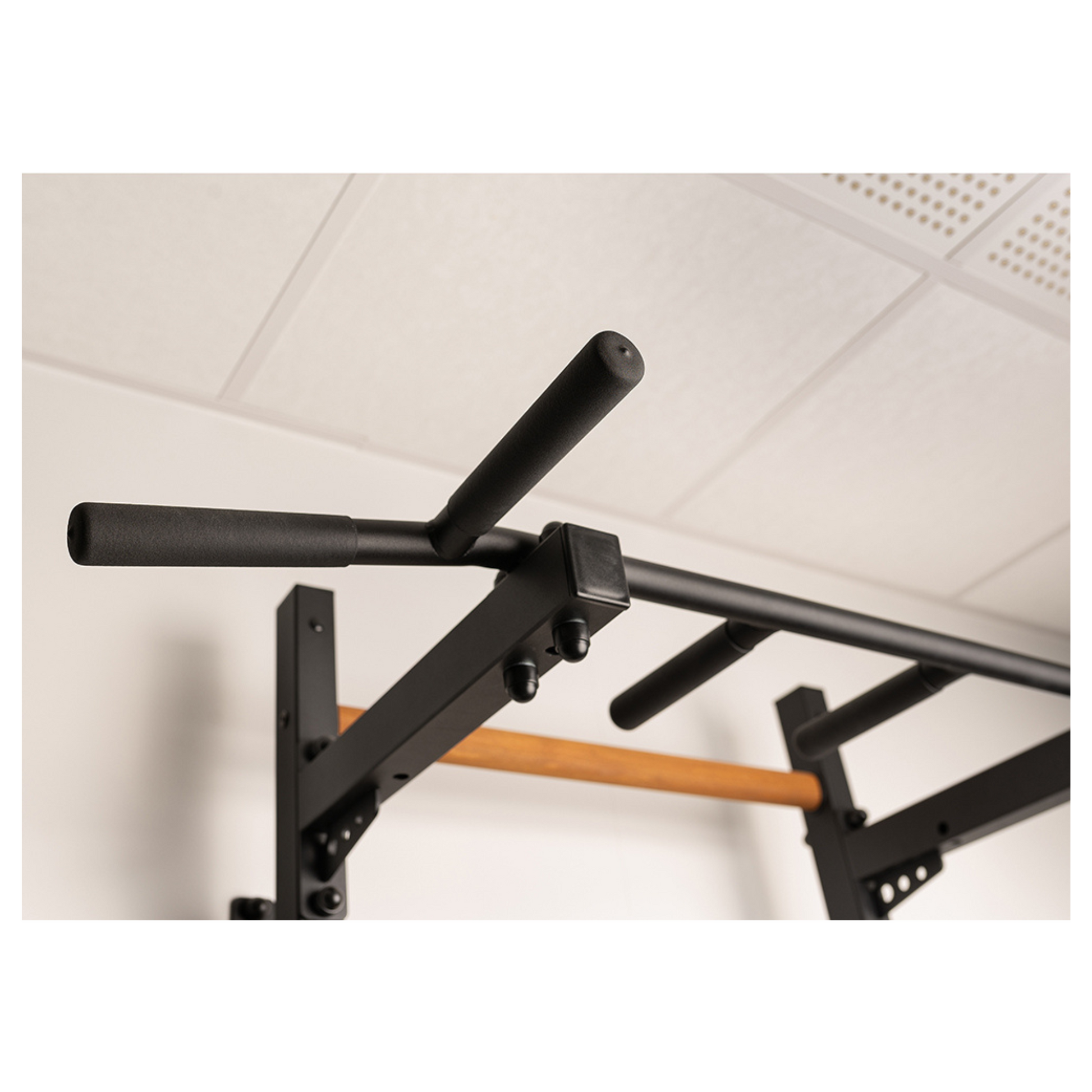

The pull-up bar is securely mounted at the top of the wall bars and features six non-slip handles, providing stability for a wide range of exercises.

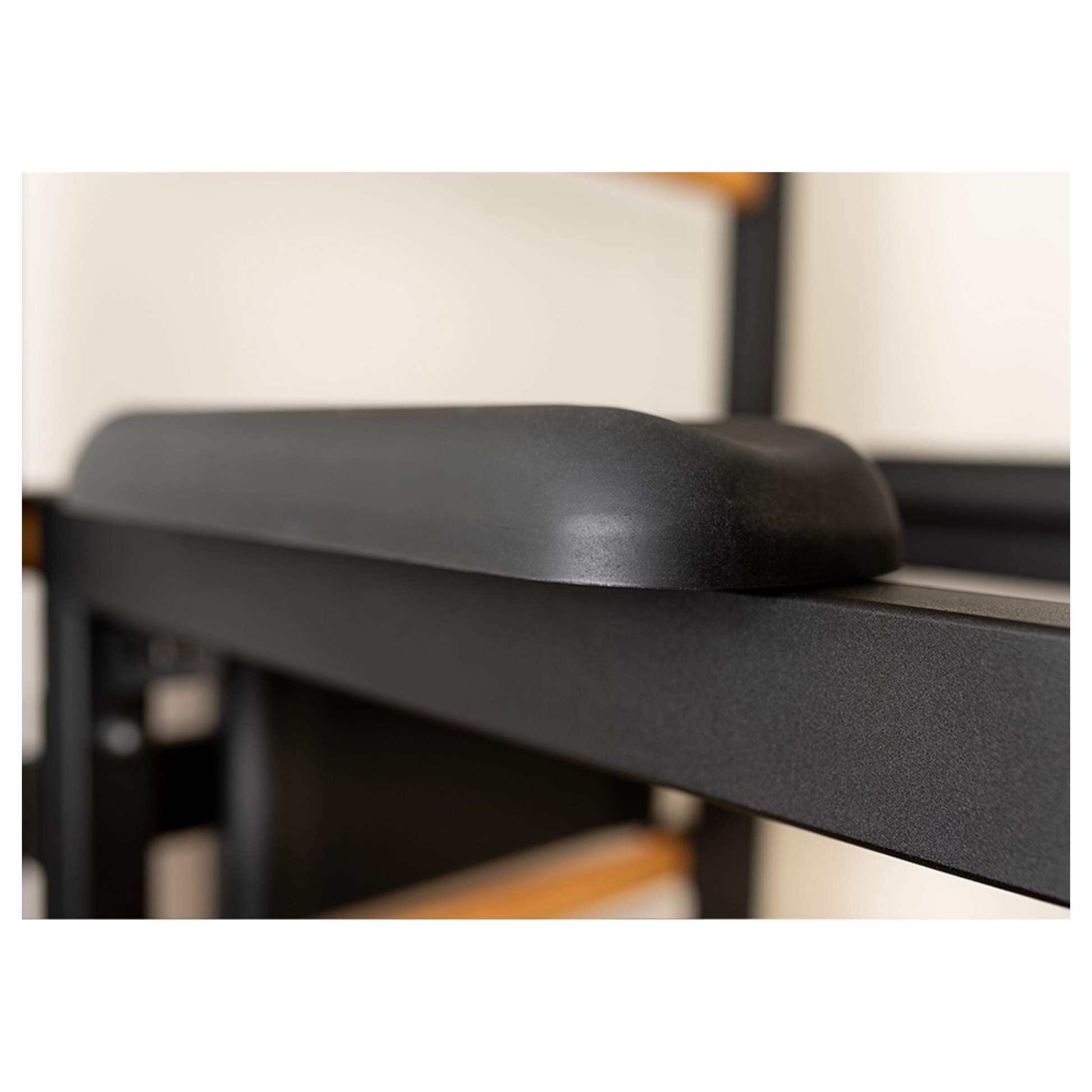

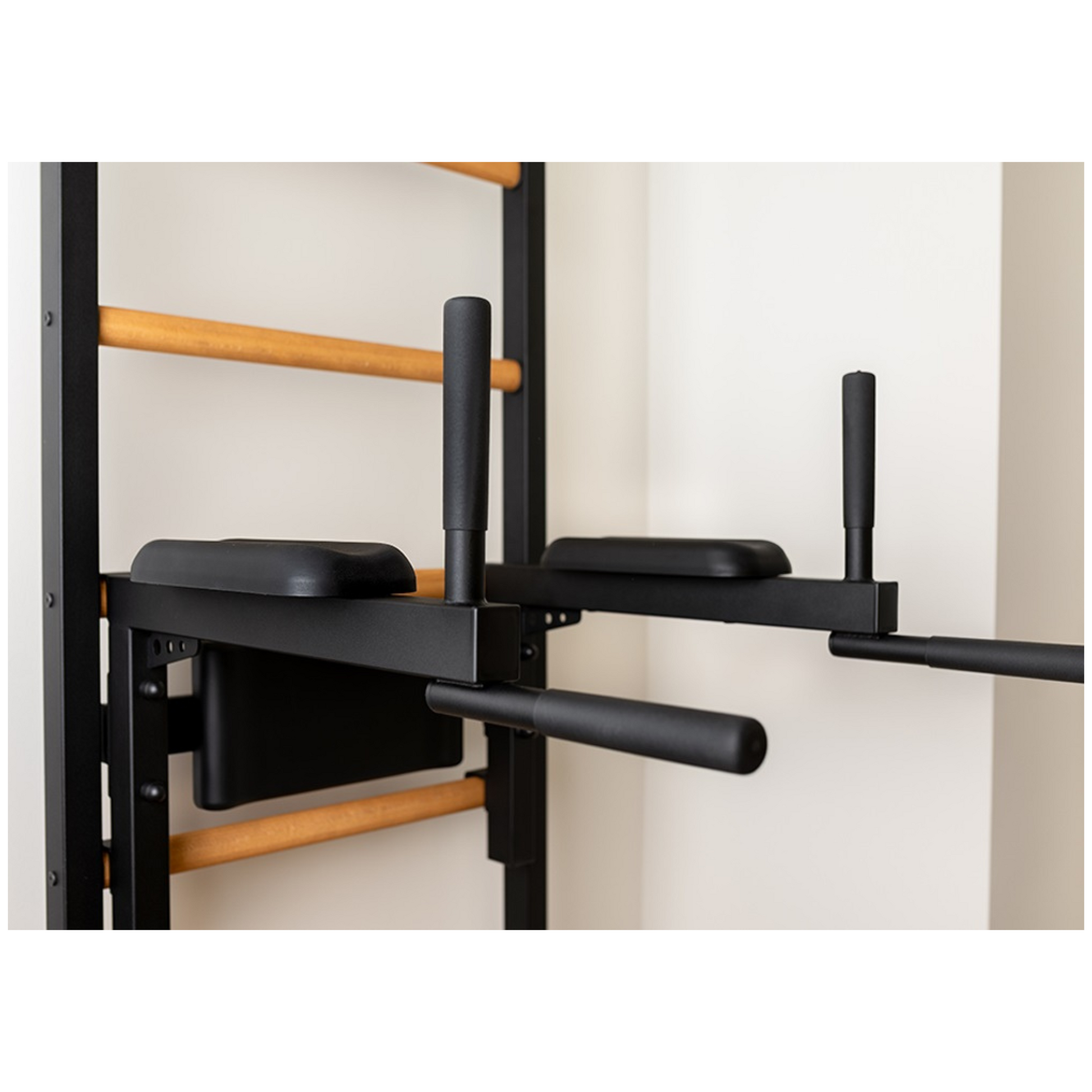

The dip bar station includes armrests and back support made from integral polyurethane foam, ensuring durability, easy maintenance, and a modern appearance. The dip bar is adjustable to the user’s height or can be removed entirely if needed.

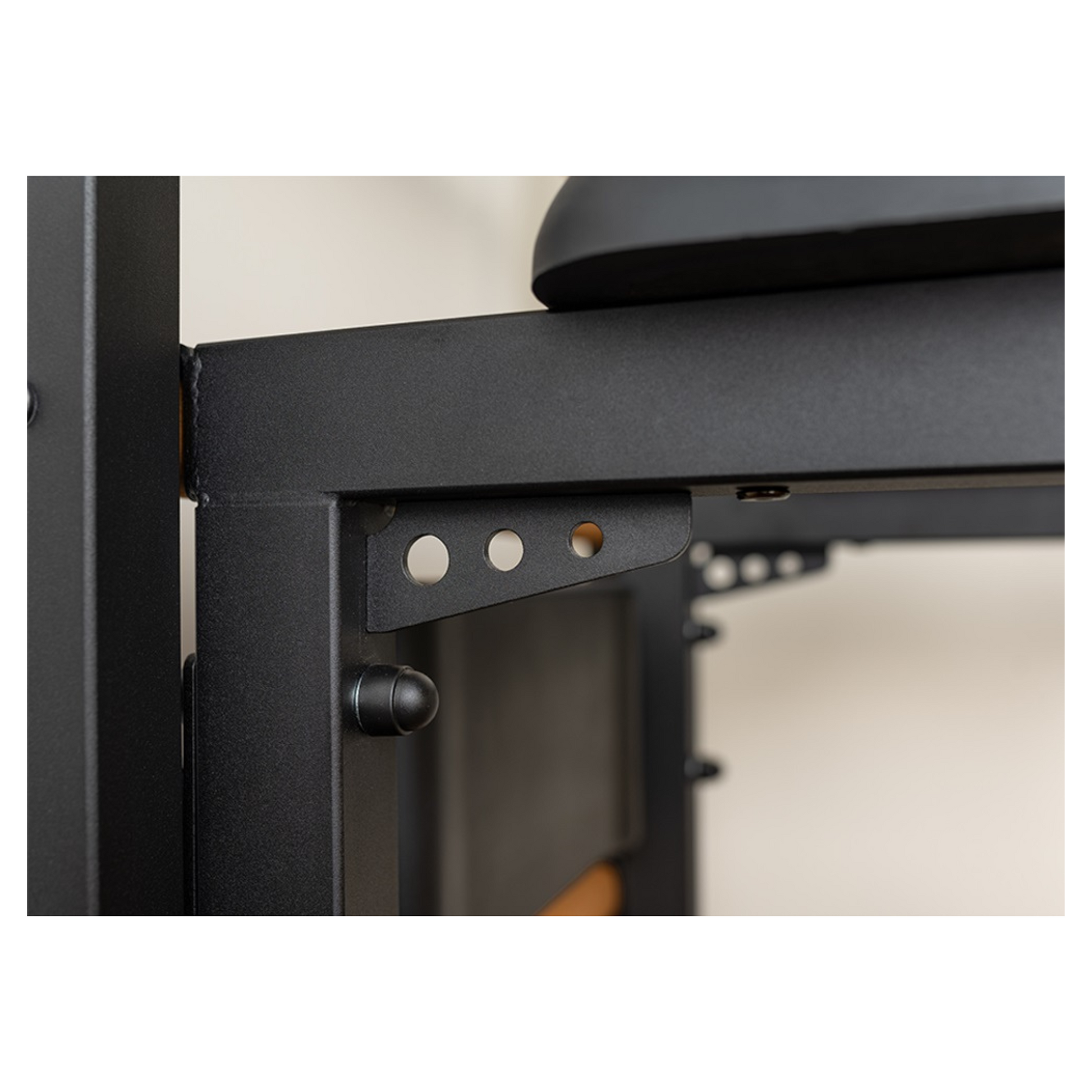

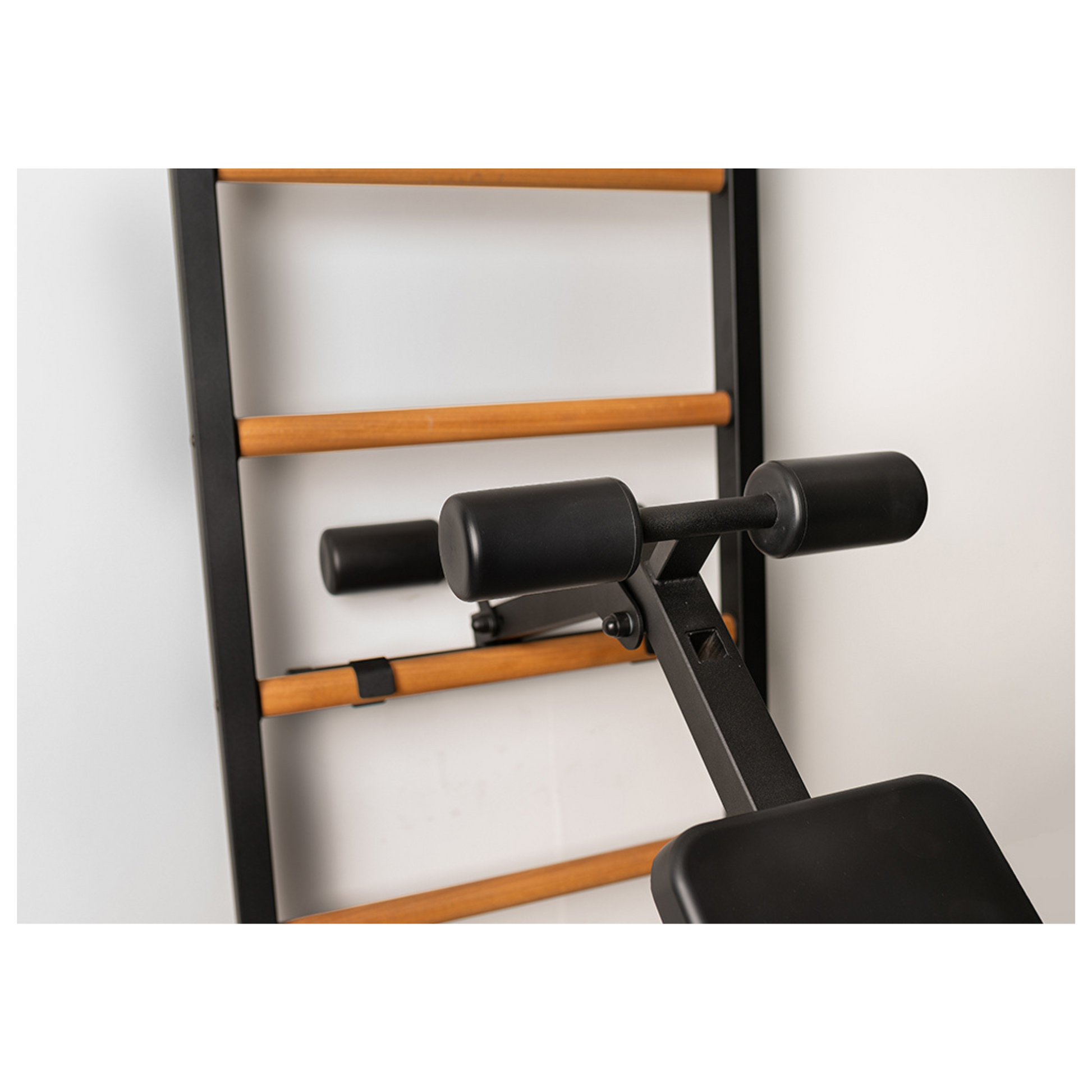

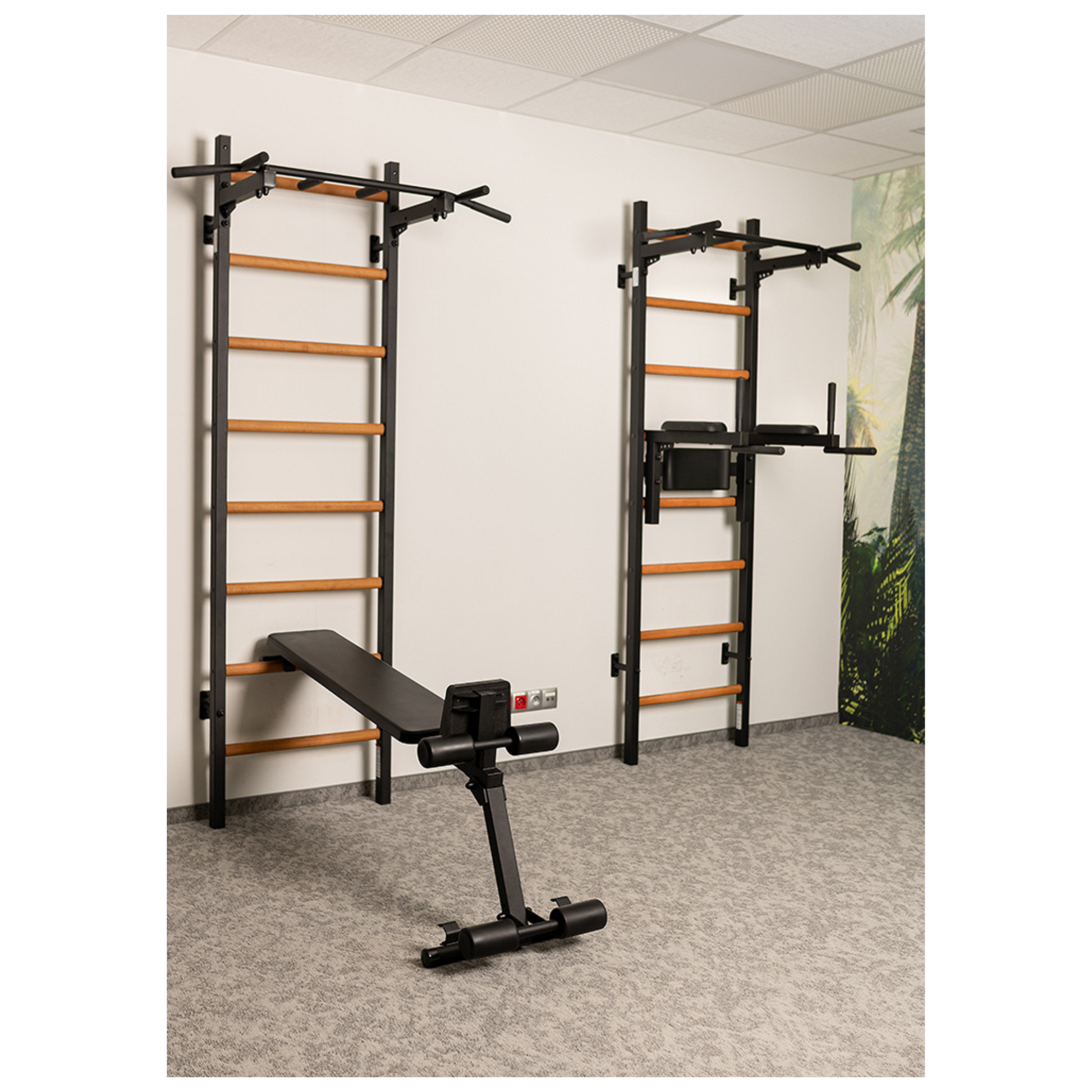

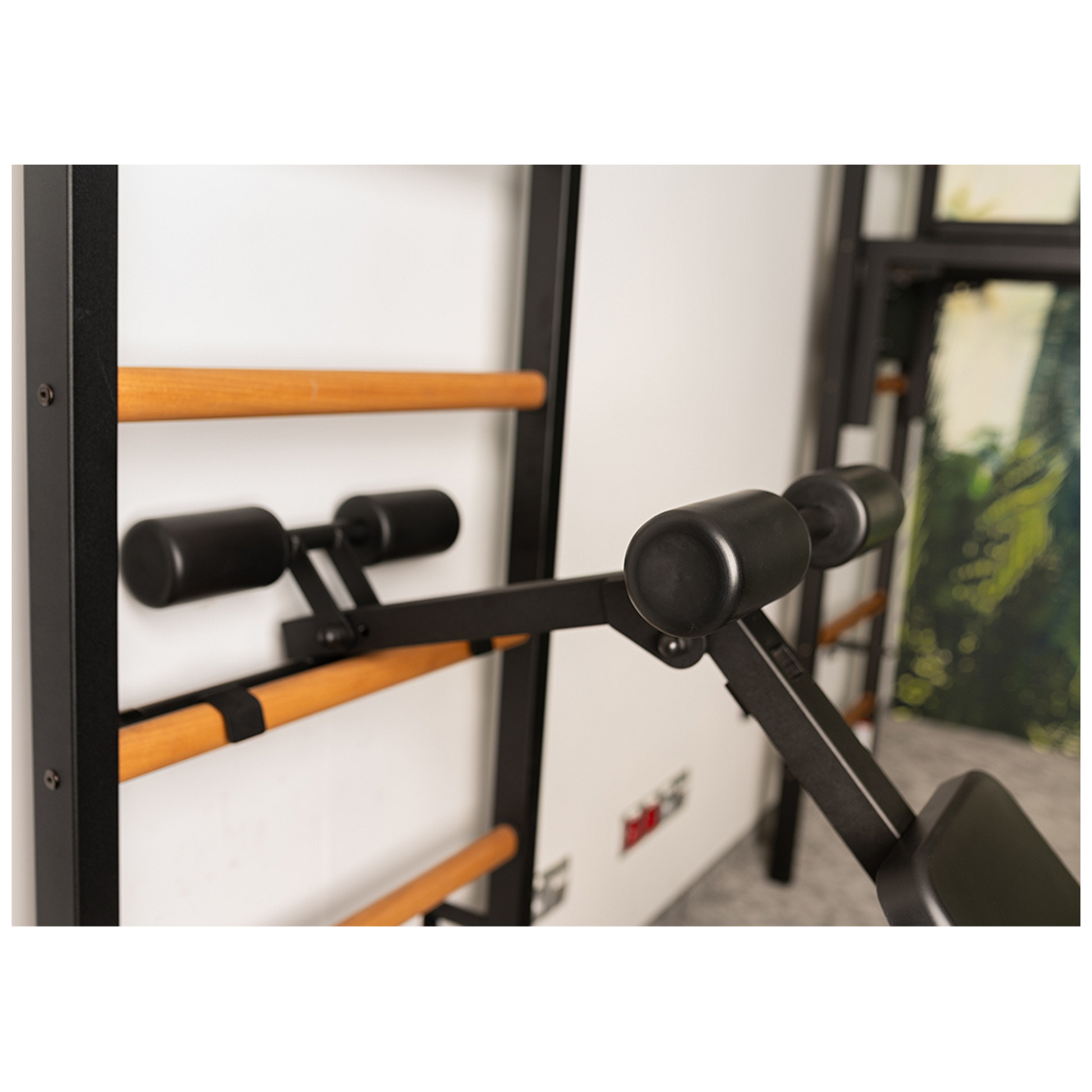

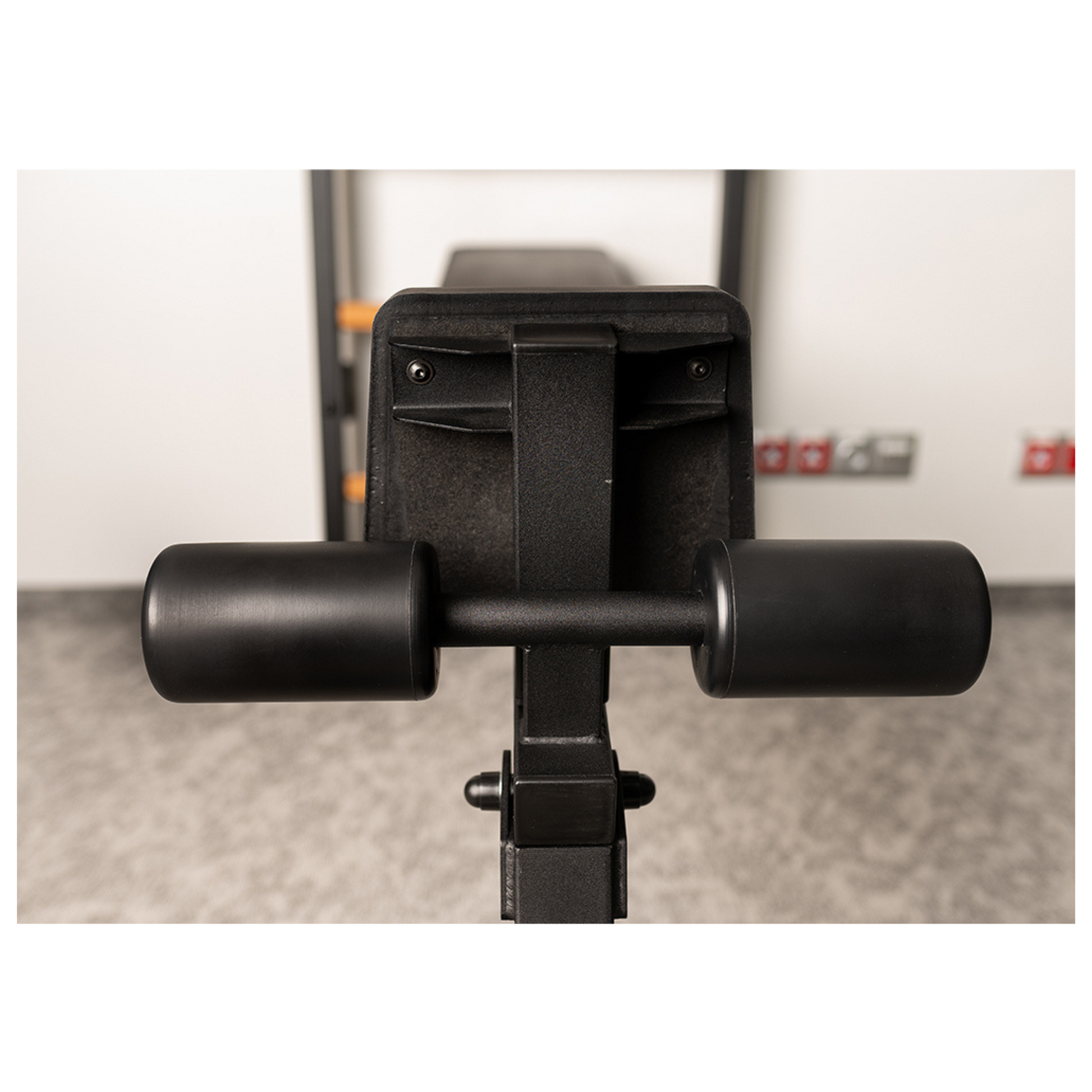

The reversible bench features an additional seat and four leg support rollers, all made from high-quality polyurethane (PU).

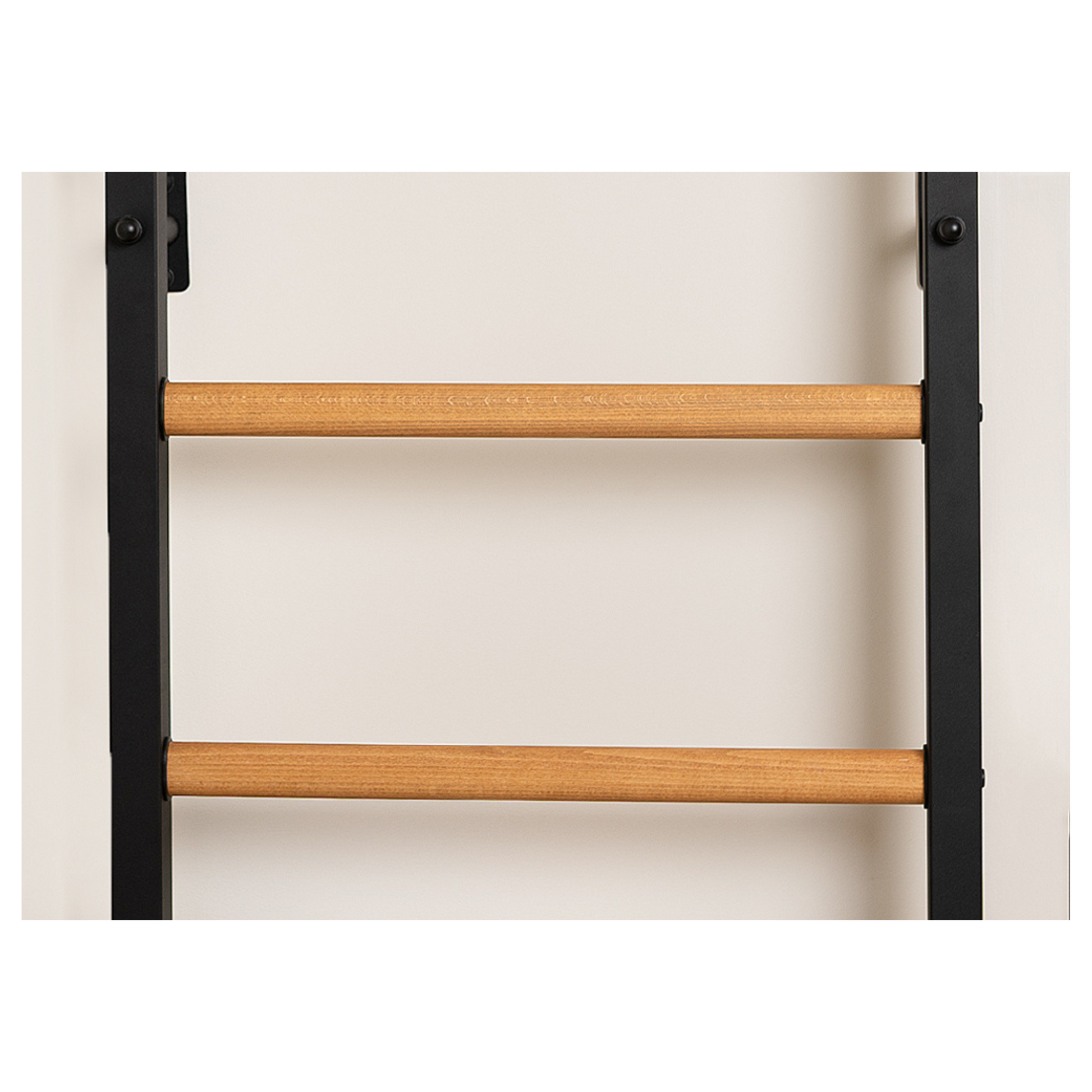

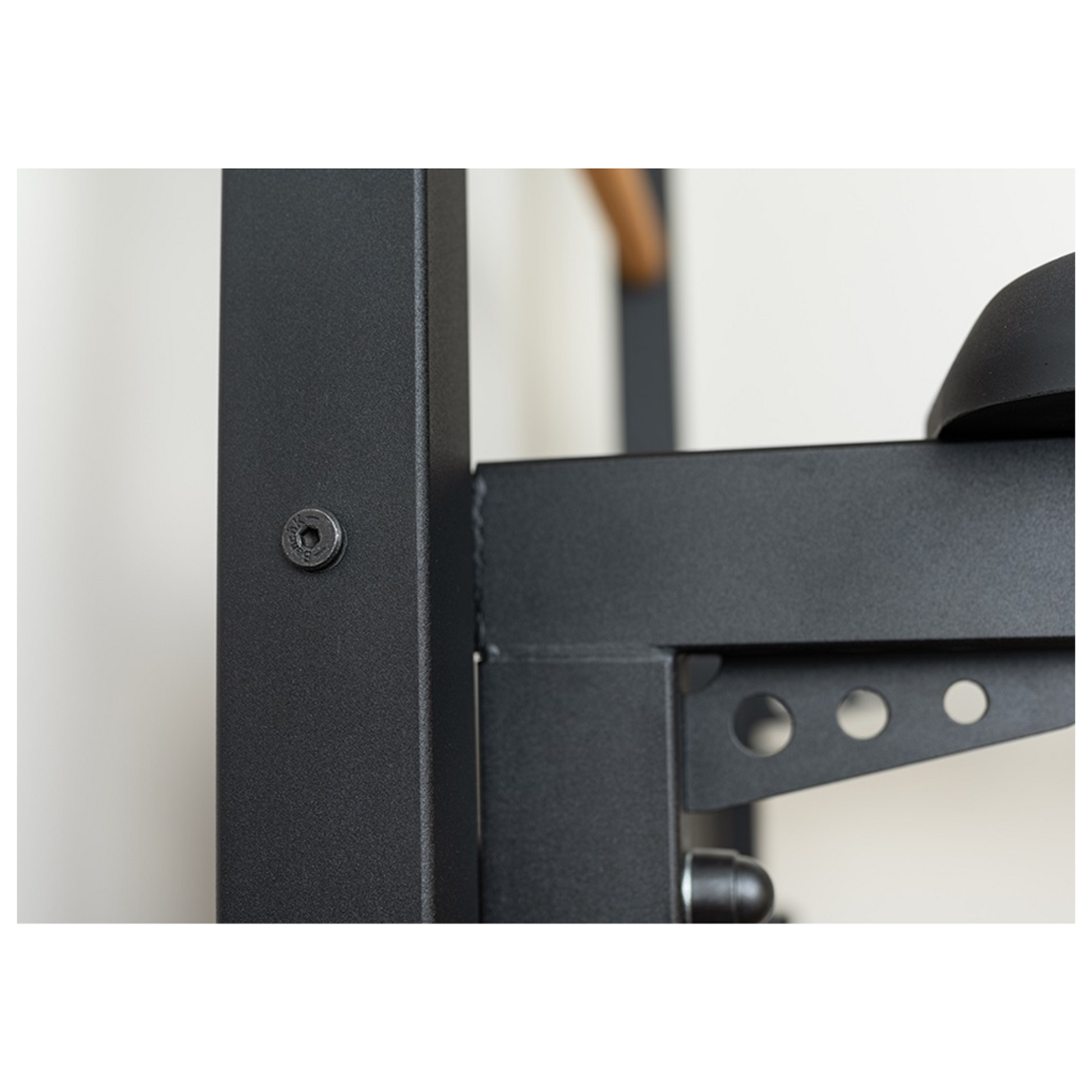

The wall bars are constructed from powder-coated steel profiles measuring 40 x 50 mm (1½″ x 2″) with a thickness of 2 mm (0.08″), for strength and durability. The wooden rungs are hand-finished with organic, linen-based oil that is food-contact safe, combining premium craftsmanship with eco-friendly materials.
Installation

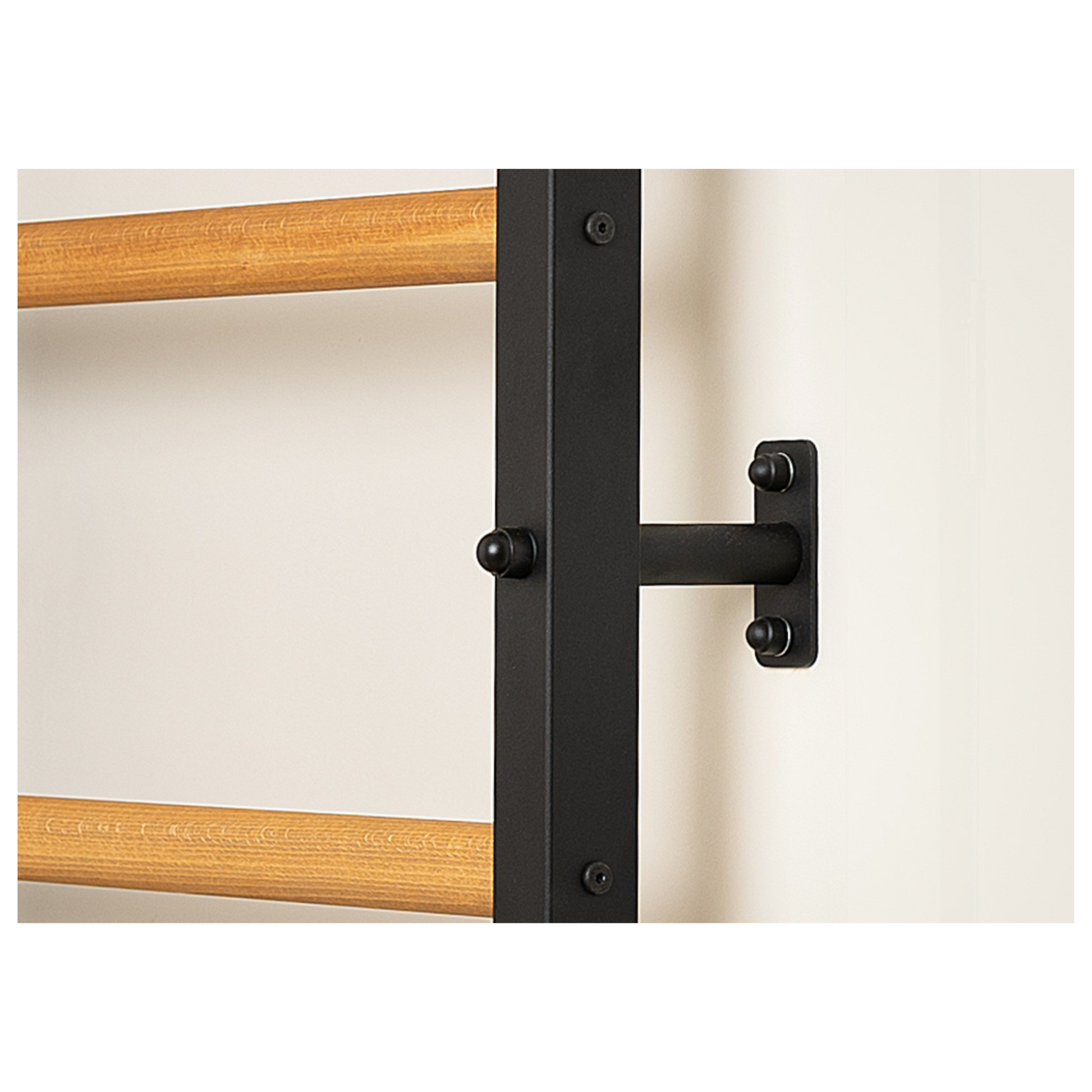

An assembly kit is included. Please note that the wall mounting set is sold separately and should be selected based on the type of wall where the bars will be installed. Wall mounting is not suitable for plasterboard walls.
Installation on Wooden Stud Walls:
Use the BenchK WHB+S8.
Installation on Various Brick, Concrete, Stone Wall Types:
Use Fischer Expansion Plugs with BenchK Wall Bar Screws available in BenchK Wall Mounting Sets. Minimum required wall thickness is 4.72″ for this type of installation.

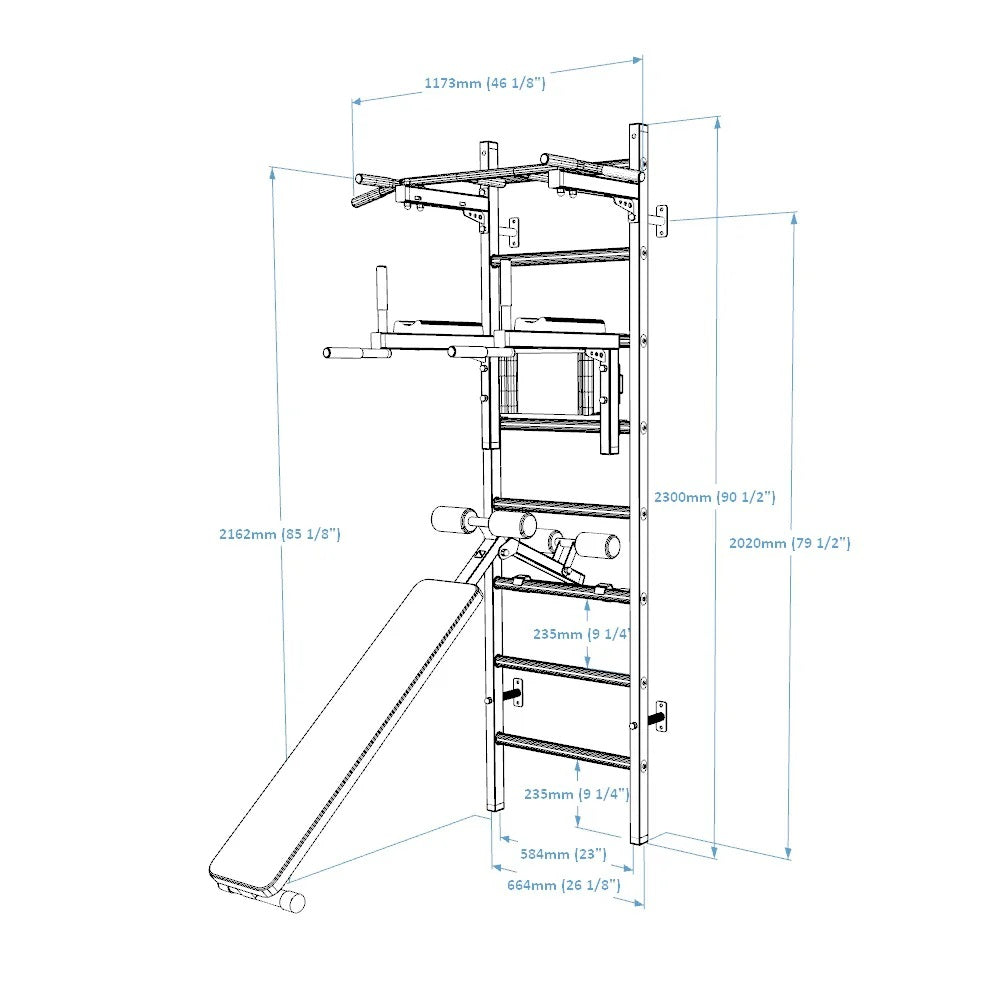

Specifications
Includes: Wall Bars (Gymnastic Ladder with 8 Oval Beech Wood Rungs), Fixed Steel 6-Grip Pull-Up Bar, Dip Bar with Back Support, Workout Bench
Maximum User Weight: 330 lbs
Wall Bar’s Width: 26 ⅜″
Pull-Up Bar’s Width: 46″
Weight: 121 lbs
Height: 90 ½″
Minimum Installation Height: 94 ½″
Material: Steel, Solid Beech Wood
Color: Black Matte
Warranty for Metal Elements: 10 Years
Warranty for Other Elements: 2 Years
